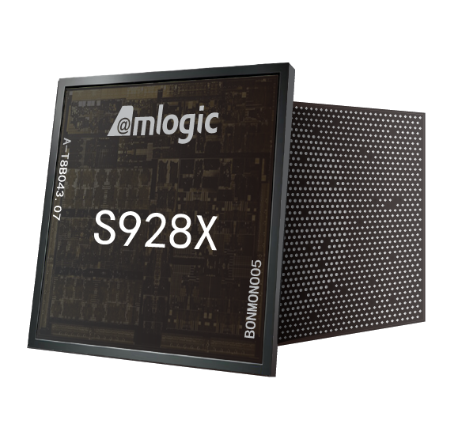

S928X

Applications Solution Smart STB, Smart Speaker, Smart TV, Smart Home, Digital Signage,

Process 12nm

CPU ARM Cortex-A76+Quad-Core ARM Cortex-A55

GPU ARM Mali-G57 MC2, 4K GUI OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0

Memory 64-bit DDR4, LPDDR4/4X, DDR4266

Storage eMMC 5.1, SLC NAND Flash

Video Processing 8Kx4K@60fps 10bit H.265, AV1, VP9, AVS3, AVS2 decoding 4Kx2K@30fps H.264 decoding 4K@60fps H.265/H.264 encoding

HDR HDR 10/10+, HLG, Dolby Vision, HDR Vivid

Ethernet 10/100/1000 MAC

USB/PCI-e 2xUSB 2 (OTG, HOST)+1xUSB 3+1xPCIe-2

Audio Interface Stereo DACs, SPDIF-in&out, eARC, 8Ch PDM, Multi-channel I2S in&out

Video Output 8Kp60 HDMI 2.1a (eARC, VRR, ALLM, QMS, QFT, DSC1.2, SBTM), HDCP 2.2/2.3

DTV/ATV 4xTS in, ISO7816
