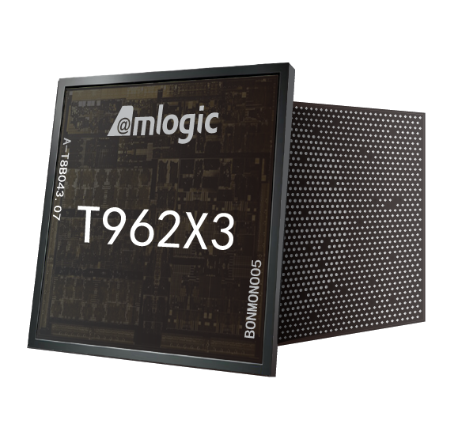

T962X3

Applications Solution Smart TV, Digital Signage,

Process 12nm

CPU Quad-Core ARM Cortex-A55

GPU ARM Mali-G31 MP2
 OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0

Memory 32-bit DDR3/3L/4, LPDDR3/4

Storage eMMC 5.0, SLC NAND Flash, SPI NOR, SD

Video Processing 4Kp75 10bit AV1/H.265/VP9 decoding
4Kp30 H.264 decoding 1080p30 H.264 encoding

HDR Dolby Vision, HDR10+, HDR10, HLG

Ethernet 10/100/1000M MAC + 10/100M PHY

USB/PCI-e 2x USB2, 1x USB3 / (PCIe Gen-2+USB2)

Audio Interface Stereo CODEC, SPDIF-in & out, 8Ch PDM, Multi-channel I2S in & out

Video Output V-by-1, LVDS, CVBS, 4K TCON

Applications All-in-one smart TV, digital signage, smart projector

Voice & Audio Processing VAD, ASRC/EQ/DRC,
2x HiFi-4 DSP

Video Input HDMI 2.1 x3 w/ eARC, CVBS x2

DTV/ATV DTMB, ATSC, USQAM, DVB-C, NTSC, PAL, SECAM
 3x TS in & 1x TS out, ISO7816

PQ Engine 10-th TruLife image engine

Local Dimming Support multi-zone
