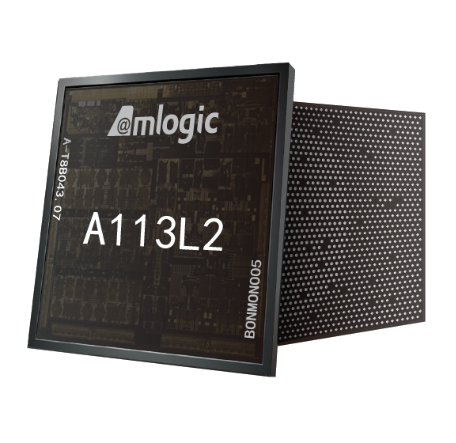

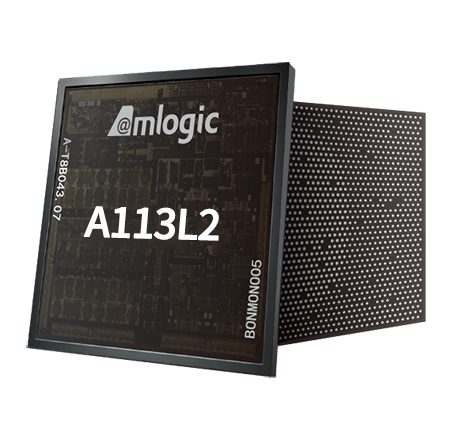

A113L2

Applications Solution Smart Home, Smart Speaker,

Process 12nm

CPU Quad-Core ARM Cortex A53

Memory 16-bit DDR3/3L/4, LPDDR4, Up to DDR3200

Storage eMMC5.1, SLC NAND Flash, SPI NOR/NAND Flash

Ethernet 10/100/1000M MAC+ 10/100M PHY

Audio Interface 2x 2 channel PDM, Multi I2S/TDM IN/OUT, SPDIF IN/OUT

LCD Interface SPI, RGB666

Peripheral Interface 3x USB2.0, 1x SDIO 3.0, 2x SPI, 5x UART, 4x I2C(Master), 1x I2C(Slave), 8x PWM, 1x IR IN&OUT, 4x SAR ADC

Security Engine TRNG/AES/DES/TDES/RSA/ECC

Applicable Solutions Speaker, Soundbar, VOIP, Speaker Phone
